How to properly install the LED tunnel lighting system?

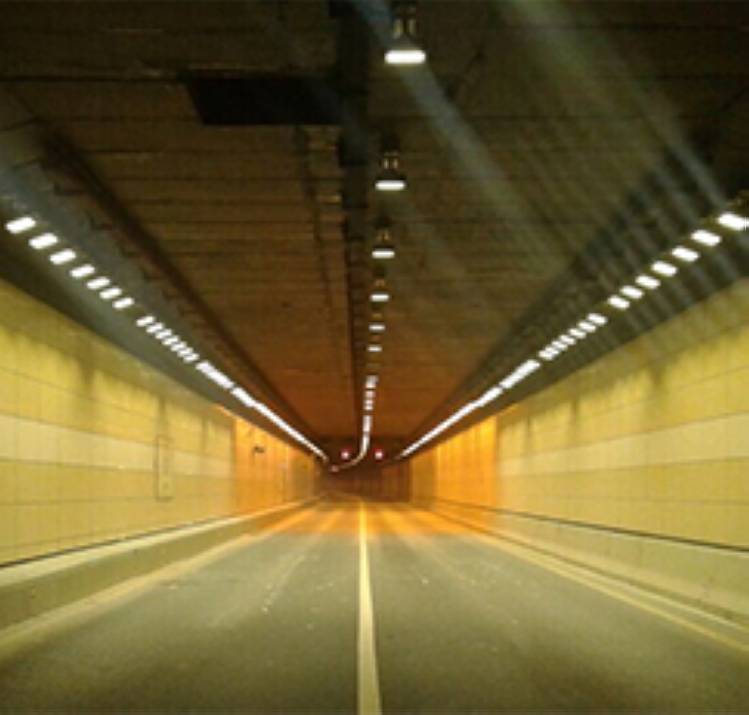

1. The arrangement and height of LED tunnel lights
The installation and arrangement of LED tunnel lighting brackets and the distance and height to the road surface of the tunnel are very critical to the lighting layout, whether it is consistent with the lighting construction drawings.
Arrangement: Including the installation angle, distance, neatness and beauty of the LED tunnel lights, etc. Generally, the installation angle and distance of the LED tunnel lights at the entrance and exit of the tunnel are relatively high, because there will be black and white holes in and out of the tunnel, and the installation distance of the middle tunnel can be A little further away.
Height: According to the height of the tunnel exit direction as the reference point, determine the horizontal height of the tunnel entrance, determine a point at every distance, connect the end to the end with a professional water line, as the center point for installing the lamp bracket, and mark it properly. hole position. Make a standard model of the lamp bracket with a plate with a relatively strong material, and use a marker to draw the drilling position of the lamp bracket according to the position and height of each lamp.
2. LED tunnel lighting base installation
Using the work trolley, the construction personnel drilled holes with an impact drill according to the determined position, and fixed the lamp bracket on the tunnel wall with expansion bolts. During operation, the impact drill bit should be perpendicular to the tunnel wall, the deflection value of the head of the installation bolt should not be greater than 1mm, and the expansion bolt must be fixed well.
3. LED tunnel light inspection
Appearance inspection: The appearance of the LED tunnel lamps is intact, the connection of each component is reliable, and the sealing meets the requirements of IP65. Technical inspection: Model conforms to design. Install the single lamp and test it, and then adjust the illumination of the lamp.
The above are some points to pay attention to about the installation of LED tunnel lights. The most important thing is to check and maintain frequently to ensure that the lighting system of LED tunnel lights is normal. If you want to know more about LED tunnel lights, please contact Yaorong Technology.
