40W Mini LED Street Light YR-FF390

Yaorong Mini LED Street Light Advantages

—————

1.High efficiency and energy saving: LED street lights can directly convert about 90% of the electrical energy into visible light, with high light efficiency, the power can be as low as one-tenth of the traditional electric light source, and the energy saving effect is very considerable when used for a long time.

2.Fast response speed: LED street lights start-up speed is as low as microseconds, and normal brightness can be achieved when powered on. It works in low-voltage constant-current mode, adapts to various working environments, avoids accidental damage caused by voltage instability, and avoids potential safety hazards.

3.Strong heat dissipation performance: Yaorong Technology LED street lamp shell design increases the heat dissipation area. The lamp housing has good heat dissipation characteristics and also meets the requirements of IP protection level and ensures the continuous effectiveness of the radiator work.

4.Reliable quality: Yaorong Technology LED street lights are made of high-quality components, each LED has a separate overcurrent protection, which can effectively reduce the failure rate, without worrying about damage.

5.High color rendering index: The color rendering of LED street lamps is much higher than that of high-pressure sodium lamps. The two achieve the same brightness, and the average illuminance of Yaorong Technology LED street lamps is more than 20% lower than that of high-pressure sodium lamps.

6.High light transmittance: Yaorong Technology LED street light is small in size and light in weight. It is encapsulated with epoxy resin, which not only protects the internal chip, but also has the ability to concentrate and transmit light.

Yaorong Mini LED Street Light Certification

—————

Yaorong Mini LED Street Light Certification

Yaorong TechnologyMini LED Street Lightparameter

—————

Mini LED Street Light
Model	CRI	Luminous Flux	Power	CCT	Warranty
YR-FF390-W010	≥70	756LM	10W	30K/40K/50K/60K/70K	5 years
YR-FF390-W020	≥70	2000LM	20W	30K/40K/50K/60K/70K	5 years
YR-FF390-W030	≥70	3000LM	30W	30K/40K/50K/60K/70K	5 years
YR-FF390-W040	≥70	4000LM	40W	30K/40K/50K/60K/70K	5 years
Temperature	-40°~50°
Power Efficiency	≥0.9
Protection level	IP65
Beam angle	85°*135°/120°
Shell Color	Black/White/Customized Color
Certification	FC/UL/PSE/CE/ROHS

Yaorong Technology Mini LED Street Light Light distribution curve

—————

Yaorong Technology Mini LED Street LightLight distribution curve

Mini LED Street Light Size Atlas

—————

Mini LED Street Light Size Atlas

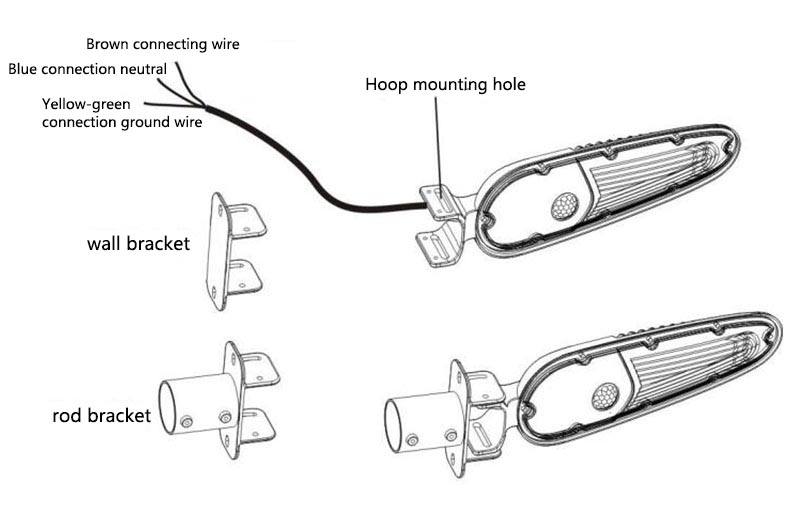

Mini LED Street Light installation Atlas

—————

Mini LED Street Light installation Atlas

Precautions For The Installation Of Mini LED Street Light

—————

Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
In order to prevent the lamp from falling off, please make sure that the installation is correct.
Please do not use it in a place with corrosive gas.
Please do not cover any material on the lamp.
For safety, please connect the ground wire securely.
This LED lamp has a five-year warranty from the date of purchase.
However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.

Five-year warranty

—————

Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.

Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.

If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.
