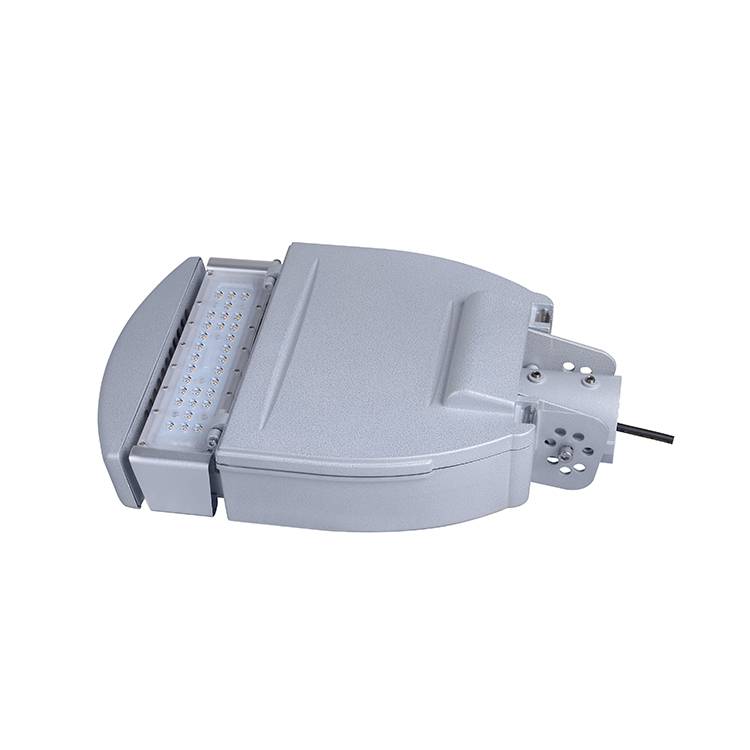

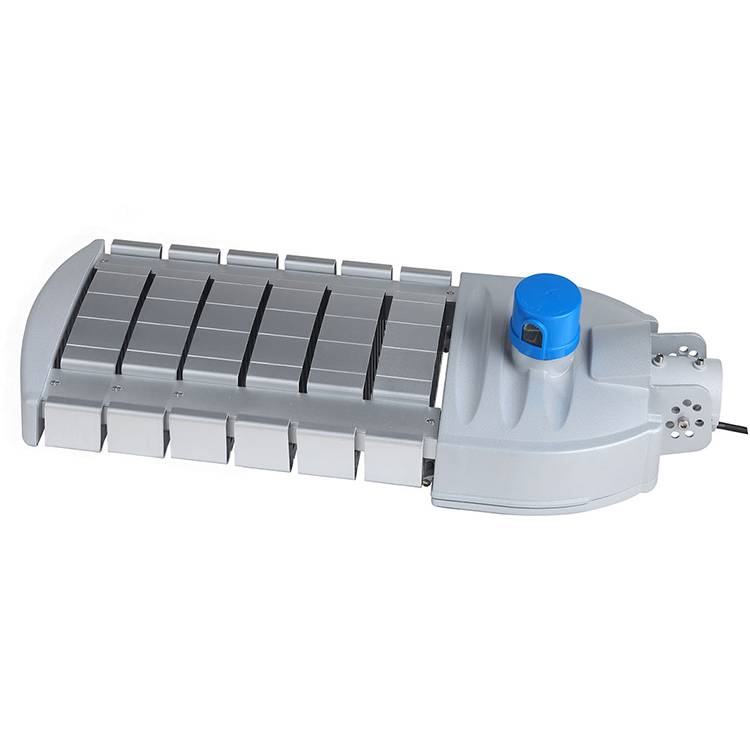

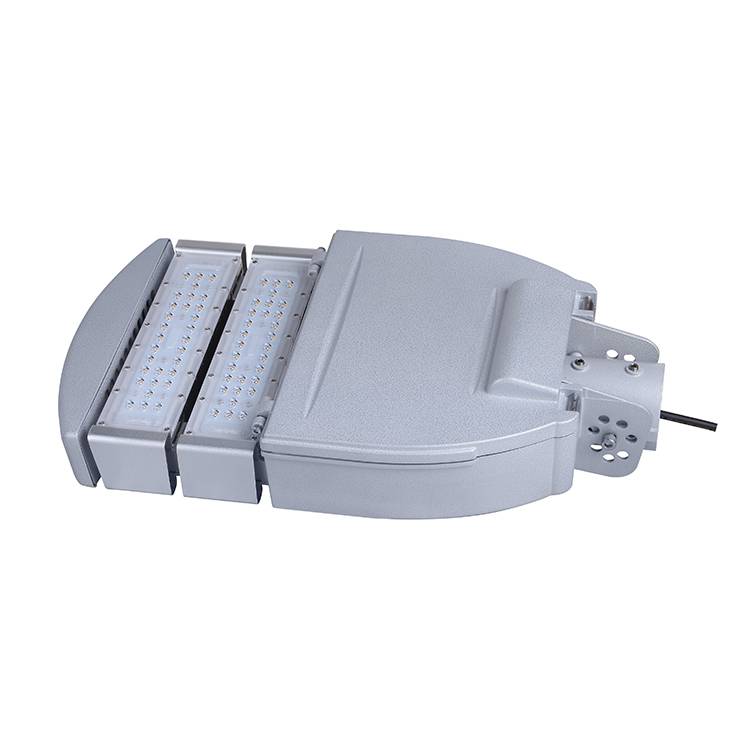

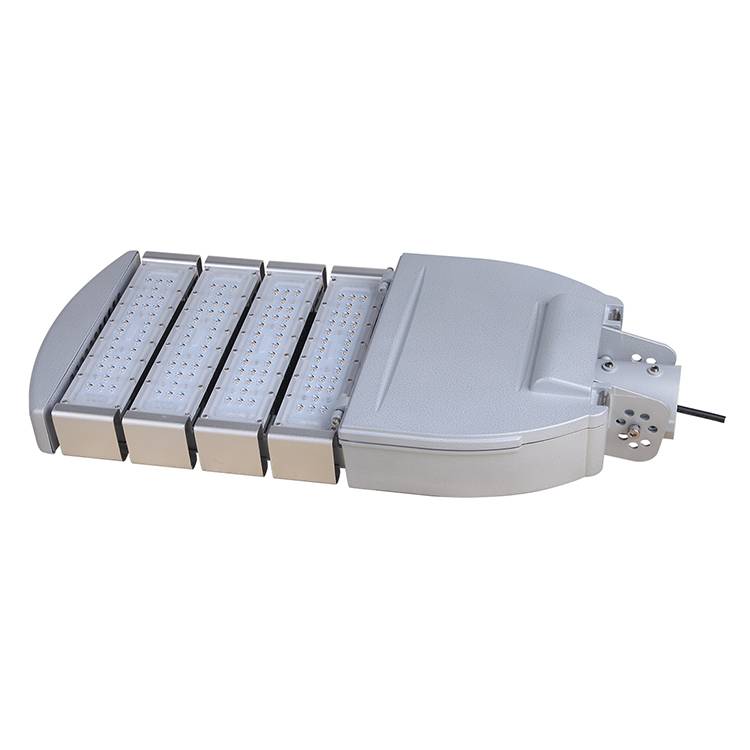

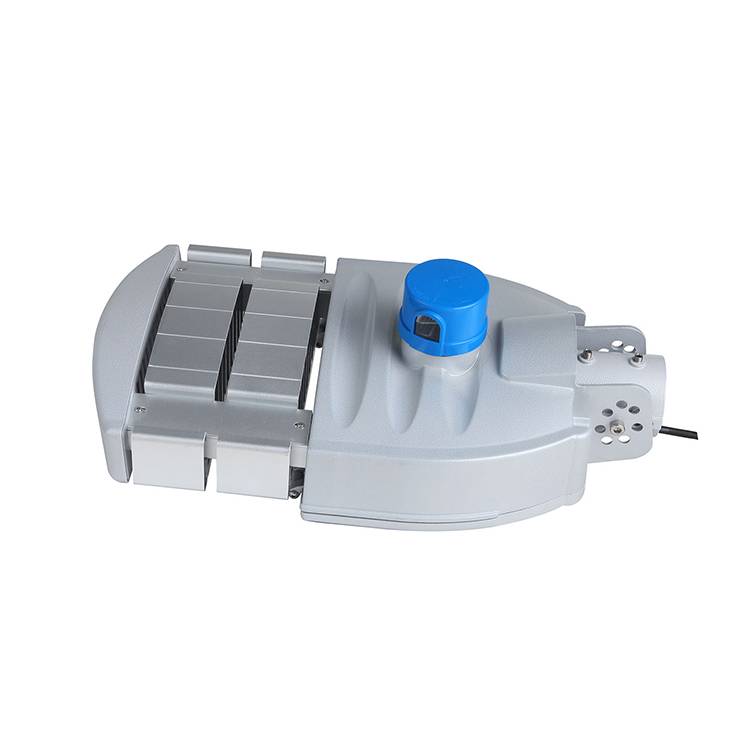

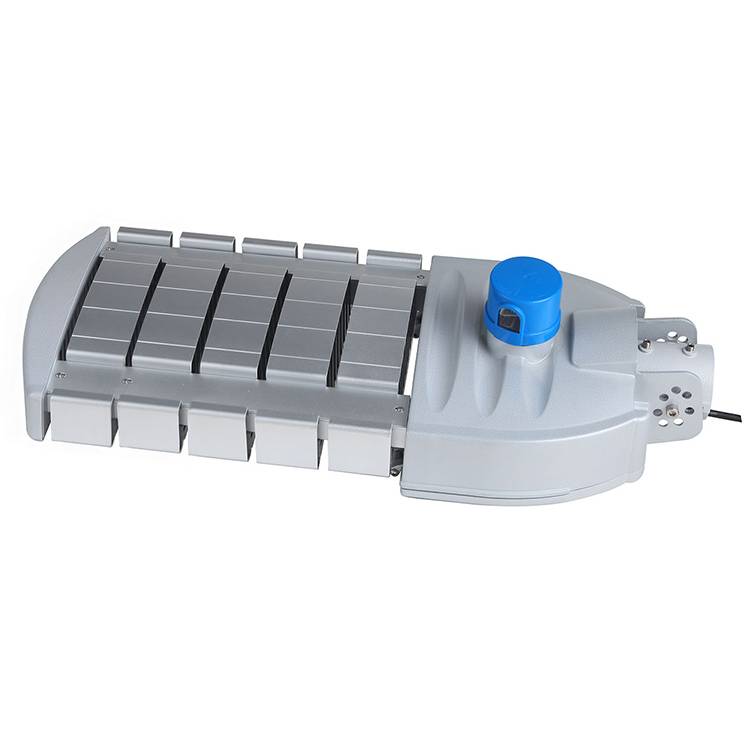

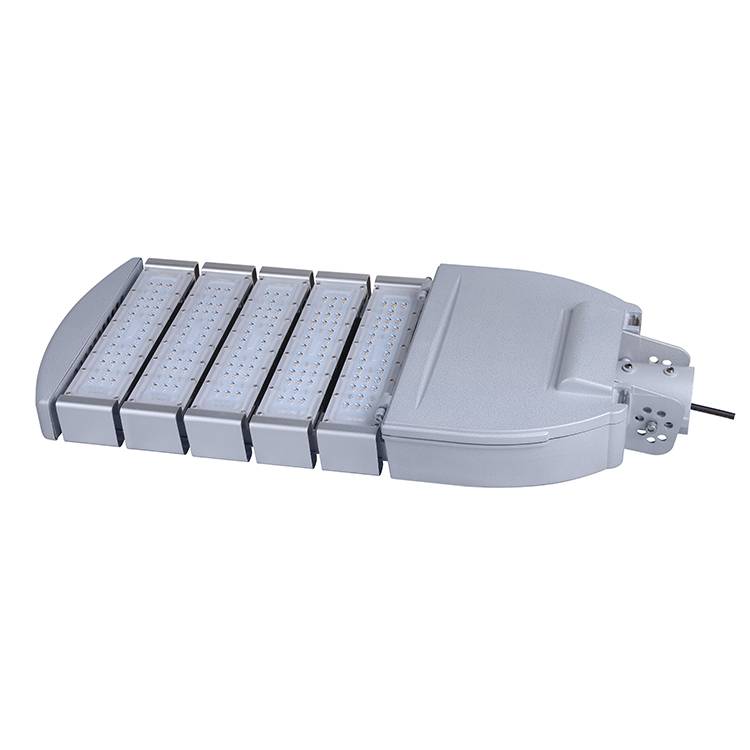

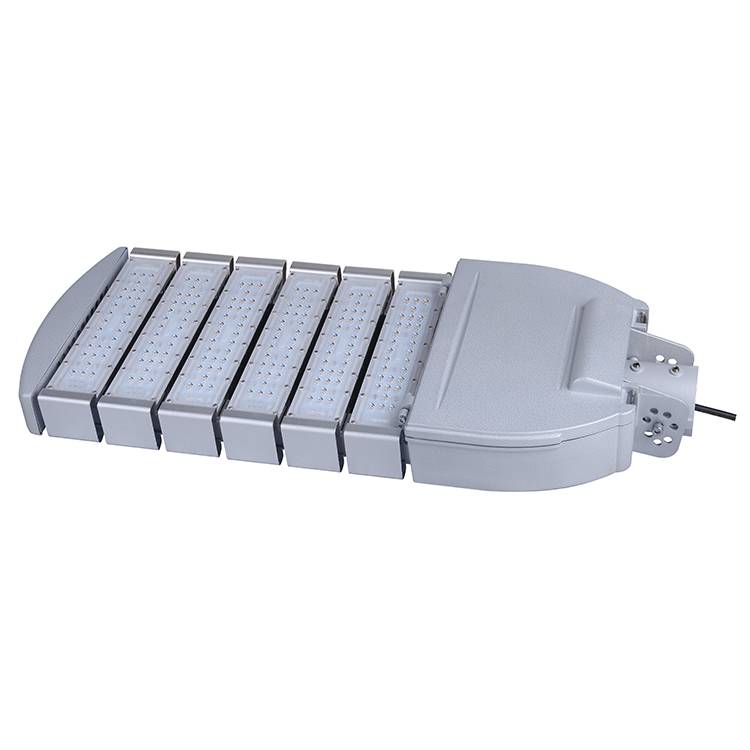

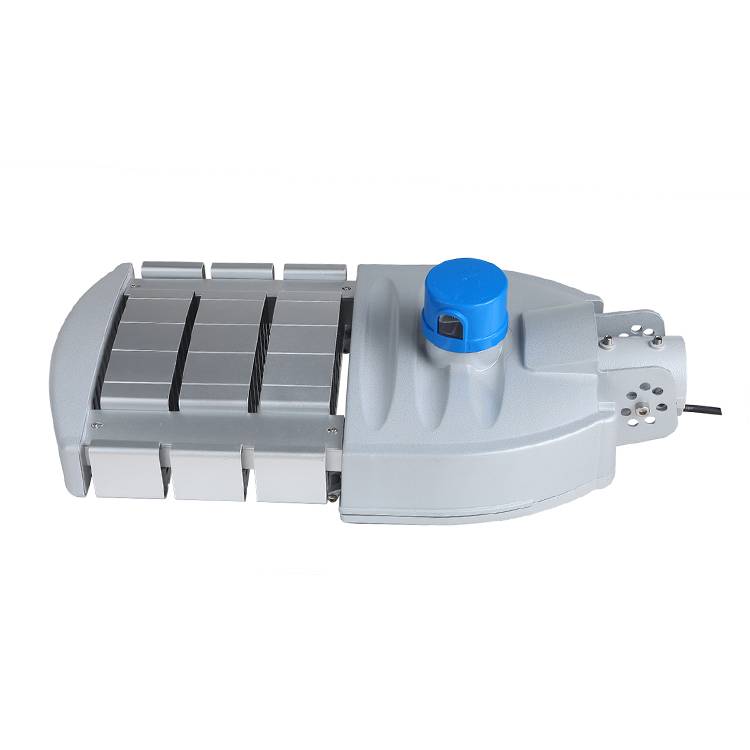

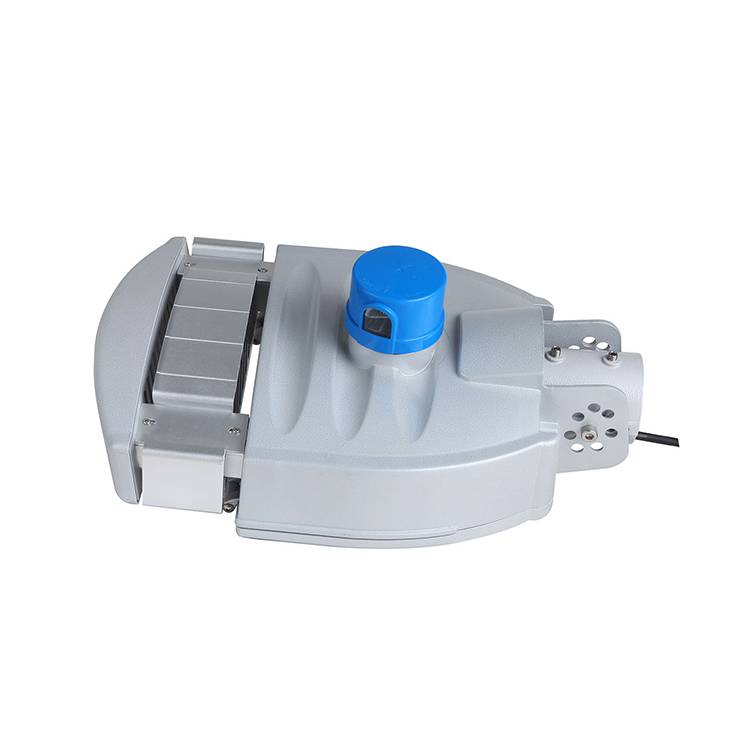

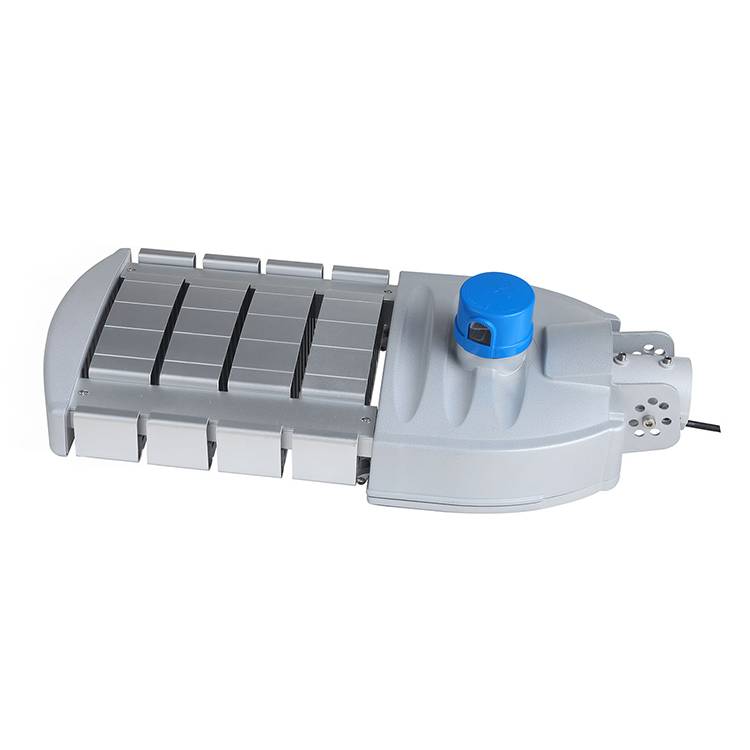

60W ST300 Module LED Street Light YR-ST300

Yaorong ST300 Module LED Street Light Advantages

—————

1.Customized light distribution: Yaorong Technology LED street light adopts a uniquely designed optical system and humanized light distribution design, which can reasonably control the light distribution according to the continuity of the road and vision, ensure road illumination and light uniformity, and can effectively avoid traditional light sources. Glare situation. And use high-power LED light energy to eliminate the phenomenon of lighting spots.

2.High light transmittance: Yaorong Technology LED street light is small in size and light in weight. It is encapsulated with epoxy resin, which not only protects the internal chip, but also has the ability to concentrate and transmit light.

3.High color rendering index: The color rendering of LED street lamps is much higher than that of high-pressure sodium lamps. The two achieve the same brightness, and the average illuminance of Yaorong Technology LED street lamps is more than 20% lower than that of high-pressure sodium lamps.

4.International certification: Yaorong Technology LED street light has passed the IP65 waterproof level test, which can easily face the harsh outdoor environment, allowing you to use it with confidence in the outdoor environment. It has passed a variety of international certification series, giving you more peace of mind.

5.Anti-glare and not dazzling: Yaorong Technology LED street light adopts DC dimming, does not flicker, does not irritate the eyes, and protects eyesight. It brings better lighting to pedestrians and drivers on the road and is safer.

6.Stable light emission: The LED street light of Yaorong Technology is driven by low voltage, with stable light emission, no pollution, no stroboscopic phenomenon of AC power supply, no ultraviolet B band, the color rendering index Ra is close to 100, and the color temperature is 5000K, which is close to the color temperature of the sun.

Yaorong ST300 Module LED Street Light Certification

—————

Yaorong TechnologyST300 Module LED Street Lightparameter

—————

ST300 Module LED Street Light
Model	CRI	Luminous Flux	Power	CCT	Warranty
YR-ST300-W030	≥70	4050LM	30W	30K/40K/50K/60K/70K	5 years
YR-ST300-W060	≥70	5850LM	60W	30K/40K/50K/60K/70K	5 years
YR-ST300-W090	≥70	9000LM	90W	30K/40K/50K/60K/70K	5 years
YR-ST300-W120	≥70	12150LM	120W	30K/40K/50K/60K/70K	5 years
YR-ST300-W150	≥70	14850LM	150W	30K/40K/50K/60K/70K	5 years
YR-ST300-W180	≥70	18000LM	180W	30K/40K/50K/60K/70K	5 years
YR-ST300-W210	≥70	20700LM	210W	30K/40K/50K/60K/70K	5 years
YR-ST300-W240	≥70	23400LM	240W	30K/40K/50K/60K/70K	5 years
Temperature	-40°~50°
Power Efficiency	≥0.9
Protection level	IP66
Beam angle	85°135°/90°140°/100°*140°/120°
Shell Color	Grey/Silver/Customized Color
Certification	FC/UL/ENEC/CB/CE/ROHS

Yaorong Technology ST300 Module LED Street Light Light distribution curve

—————

Yaorong Technology ST300 Module LED Street LightLight distribution curve

ST300 Module LED Street Light Size Atlas

—————

ST300 Module LED Street Light installation Atlas

—————

Precautions For The Installation Of ST300 Module LED Street Light

—————

Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
In order to prevent the lamp from falling off, please make sure that the installation is correct.
Please do not use it in a place with corrosive gas.
Please do not cover any material on the lamp.
For safety, please connect the ground wire securely.
This LED lamp has a five-year warranty from the date of purchase.
However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.

Five-year warranty

—————

Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.

Yaorong ST300 Module LED Street Light Case

—————
