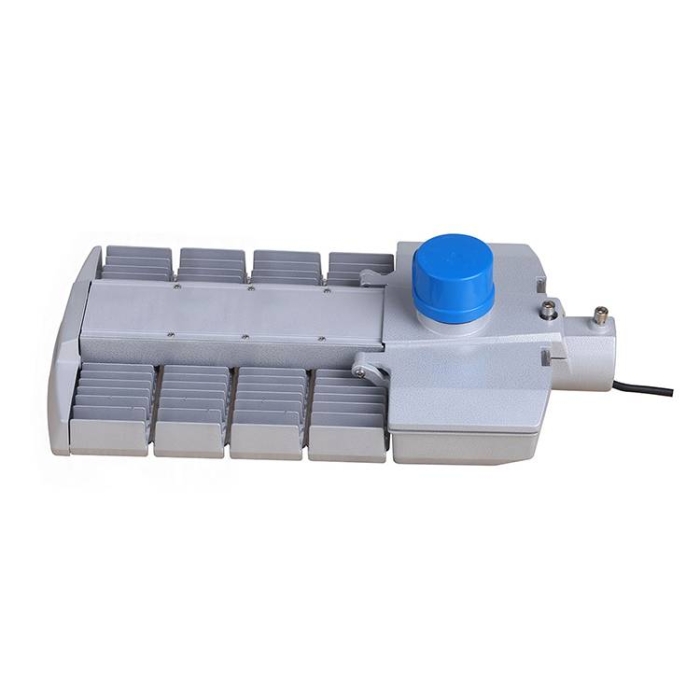

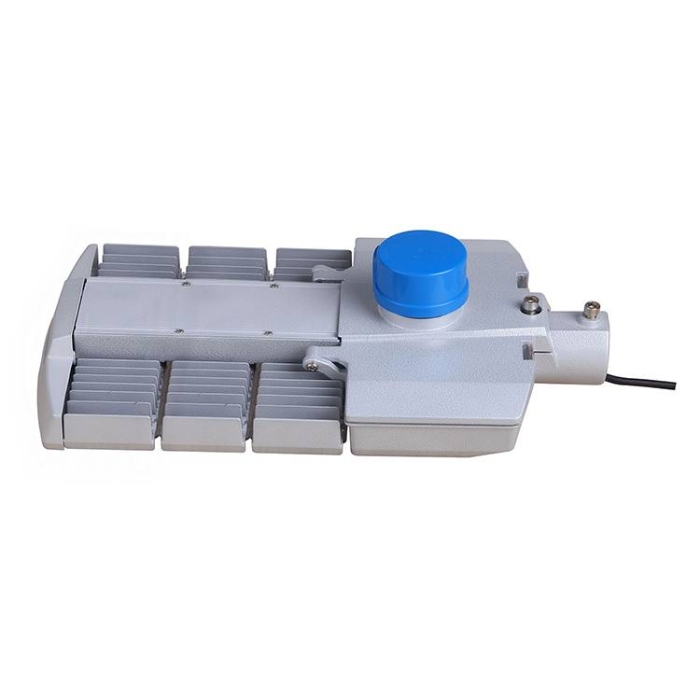

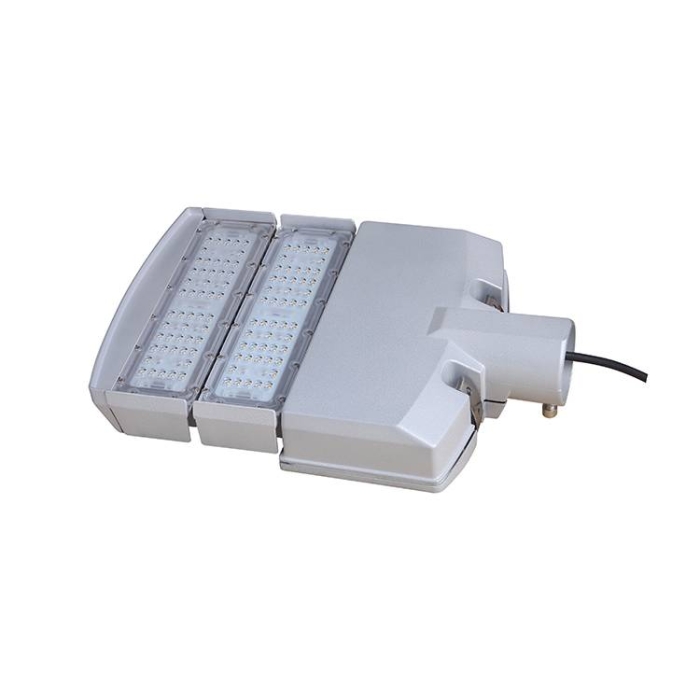

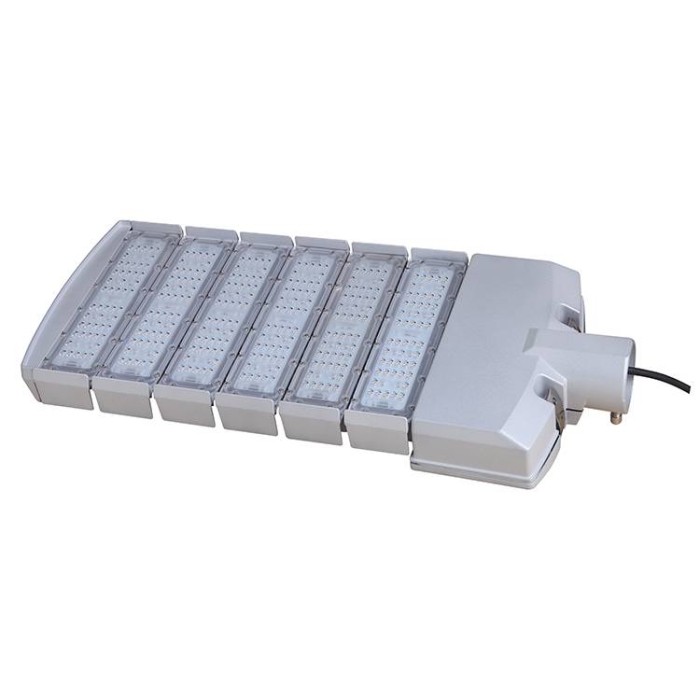

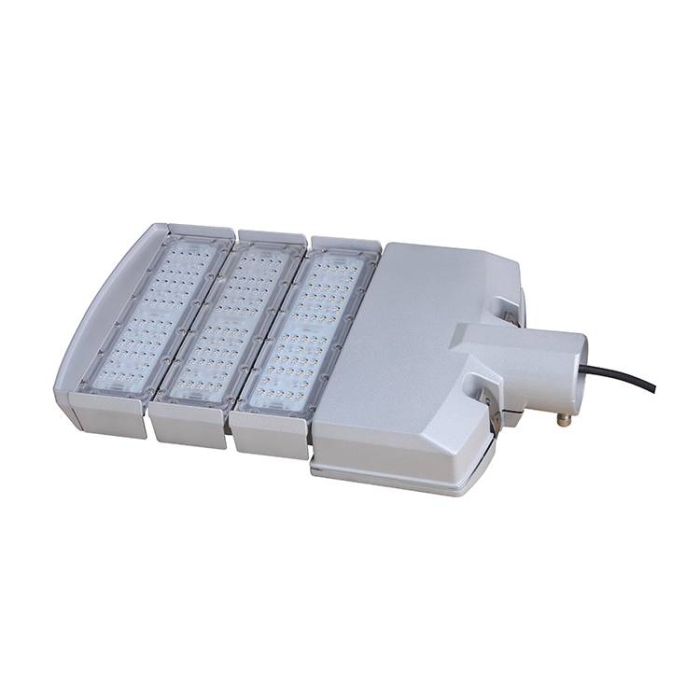

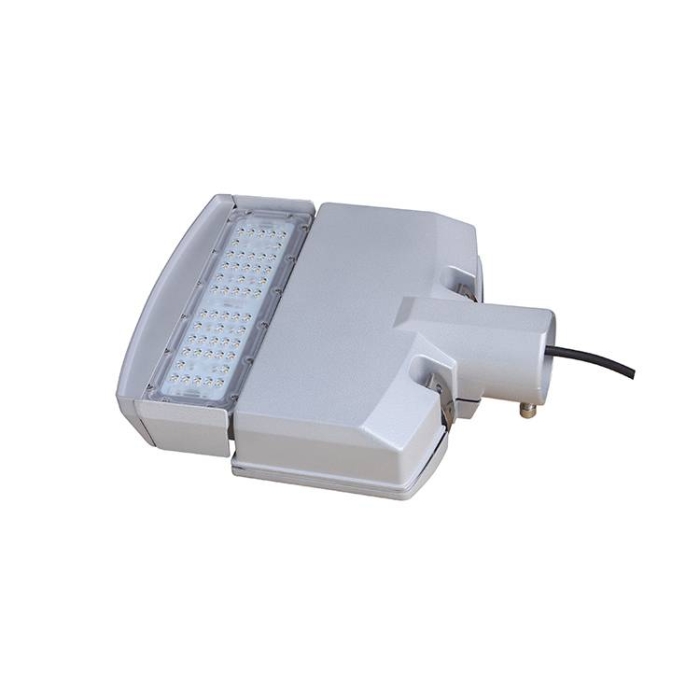

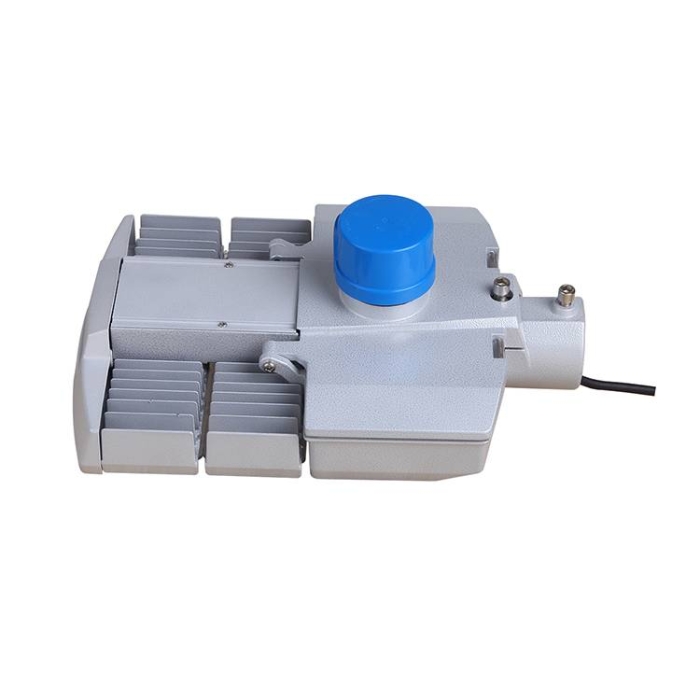

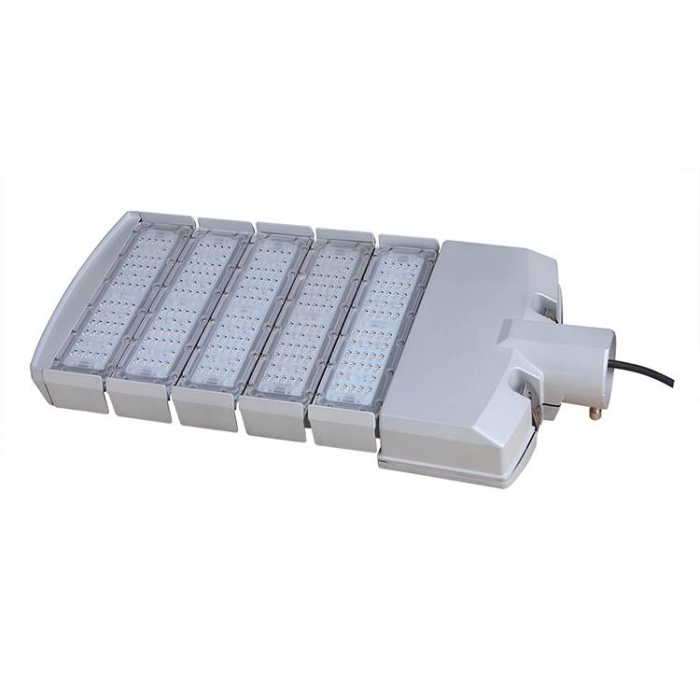

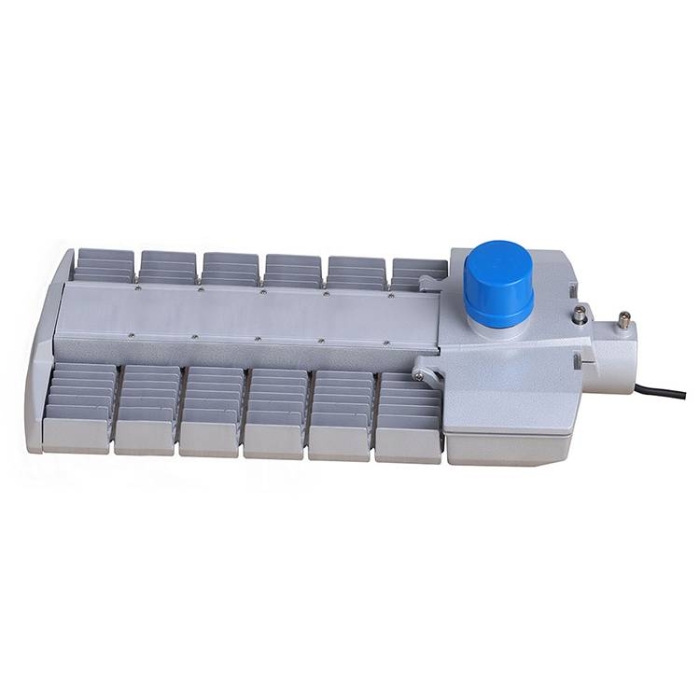

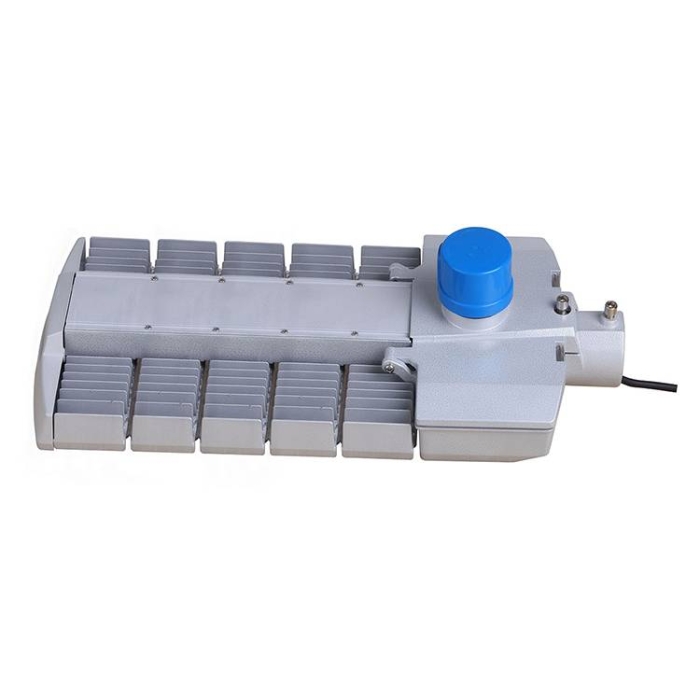

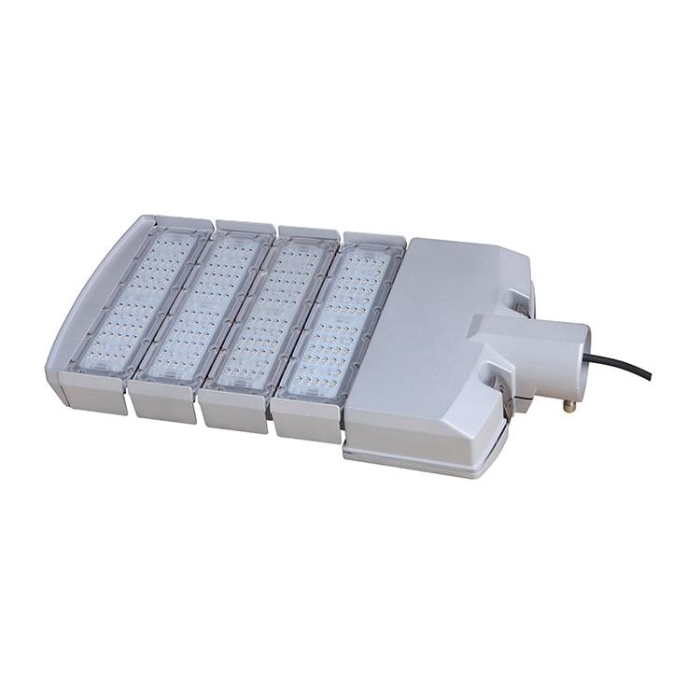

200W ST295 Module LED Street Light YR-ST295

Yaorong ST295 Module LED Street Light Advantages

—————

1.5-Year Warranty: YaoRong Technology LED Street Lights provide up to 5-year warranty. Yaorong will solve after-sales problems for you at the first time, so that you can buy with confidence and use it with peace of mind.

2.Intelligent control: Yaorong Technology LED street lights have automatic control energy-saving devices, which can reduce the power to the greatest extent possible and save energy under the conditions of different lighting conditions. It can realize computer dimming, time-segment control, light control, temperature control, automatic inspection and other humanized functions.

3.High color rendering index: The color rendering of LED street lamps is much higher than that of high-pressure sodium lamps. The two achieve the same brightness, and the average illuminance of Yaorong Technology LED street lamps is more than 20% lower than that of high-pressure sodium lamps.

4.Secondary optical design: Yaorong Technology LED street lamp has a unique secondary optical design, which further improves lighting efficiency, realizes reasonable comprehensive light distribution of street lamps, green environmental protection, energy saving and emission reduction.

5.Strong heat dissipation performance: Yaorong Technology LED street lamp shell design increases the heat dissipation area. The lamp housing has good heat dissipation characteristics and also meets the requirements of IP protection level and ensures the continuous effectiveness of the radiator work.

6.Stable light emission: The LED street light of Yaorong Technology is driven by low voltage, with stable light emission, no pollution, no stroboscopic phenomenon of AC power supply, no ultraviolet B band, the color rendering index Ra is close to 100, and the color temperature is 5000K, which is close to the color temperature of the sun.

Yaorong ST295 Module LED Street Light Certification

—————

Yaorong TechnologyST295 Module LED Street Lightparameter

—————

ST295 Module LED Street Light
Model	CRI	Luminous Flux	Power	CCT	Warranty
YR-ST295-W050	≥70	4500LM	50W	30K/40K/50K/60K/70K	5 years
YR-ST295-W100	≥70	9300LM	100W	30K/40K/50K/60K/70K	5 years
YR-ST295-W150	≥70	14000LM	150W	30K/40K/50K/60K/70K	5 years
YR-ST295-W200	≥70	18600LM	200W	30K/40K/50K/60K/70K	5 years
YR-ST295-W240	≥70	23250LM	240W	30K/40K/50K/60K/70K	5 years
YR-ST295-W300	≥70	28200LM	300W	30K/40K/50K/60K/70K	5 years
Temperature	-40°~50°
Power Efficiency	≥0.9
Protection level	IP65
Beam angle	85°135°/90°140°/120°
Shell Color	Grey/Silver/Customized Color
Certification	FC/UL/ENEC/CB/CE/ROHS

Yaorong Technology ST295 Module LED Street Light Light distribution curve

—————

Yaorong Technology ST295 Module LED Street LightLight distribution curve

ST295 Module LED Street Light Size Atlas

—————

ST295 Module LED Street Light installation Atlas

—————

Precautions For The Installation Of ST295 Module LED Street Light

—————

Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
In order to prevent the lamp from falling off, please make sure that the installation is correct.
Please do not use it in a place with corrosive gas.
Please do not cover any material on the lamp.
For safety, please connect the ground wire securely.
This LED lamp has a five-year warranty from the date of purchase.
However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.

Five-year warranty

—————

Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.

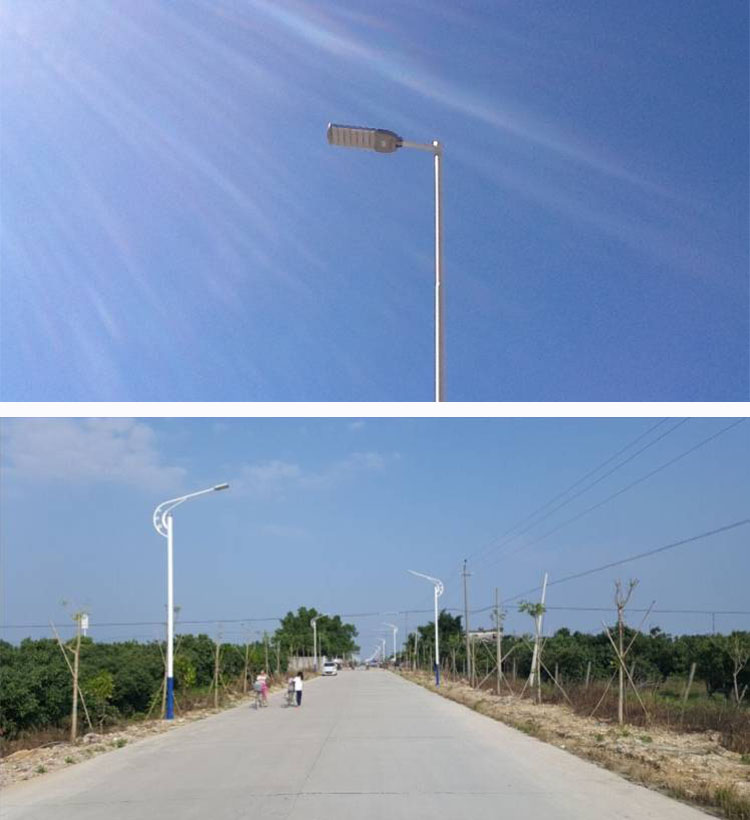

Yaorong ST295 Module LED Street Light Case

—————
