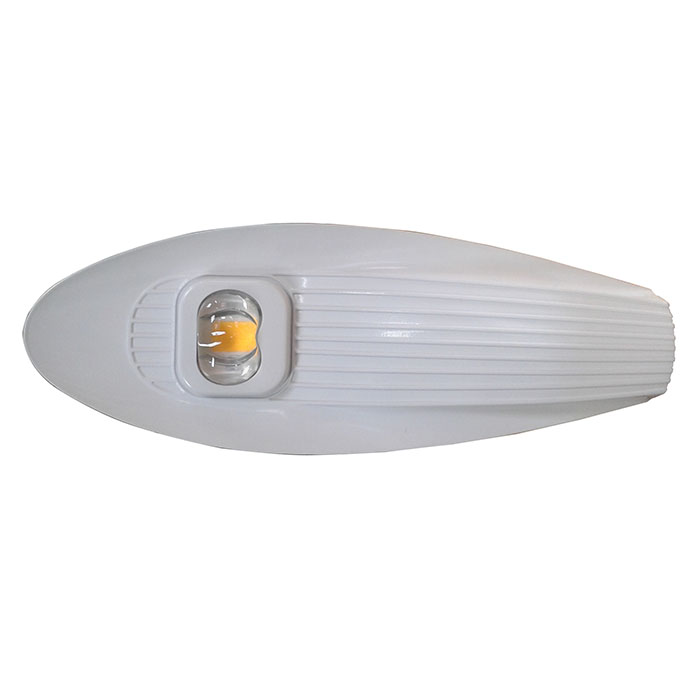

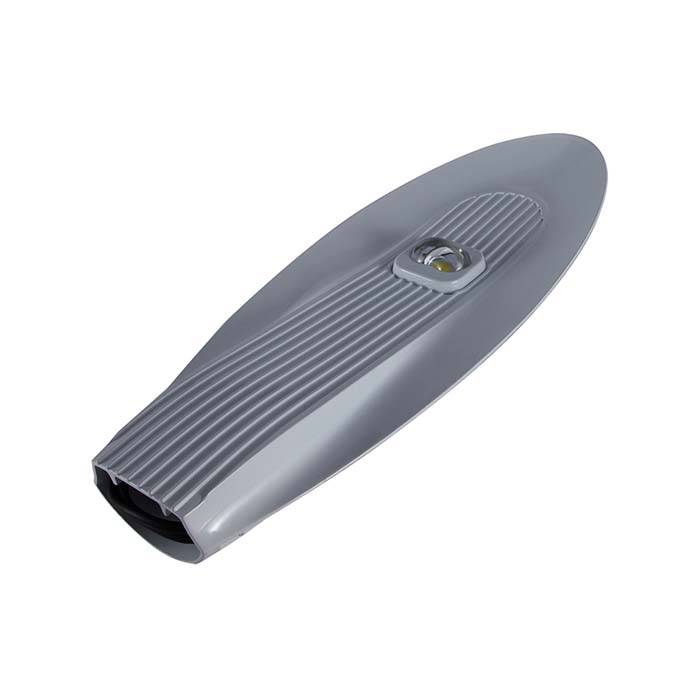

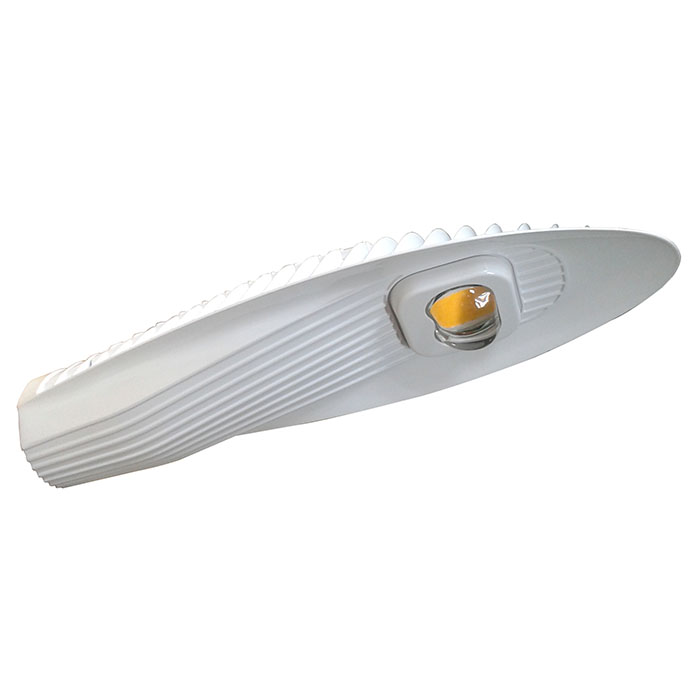

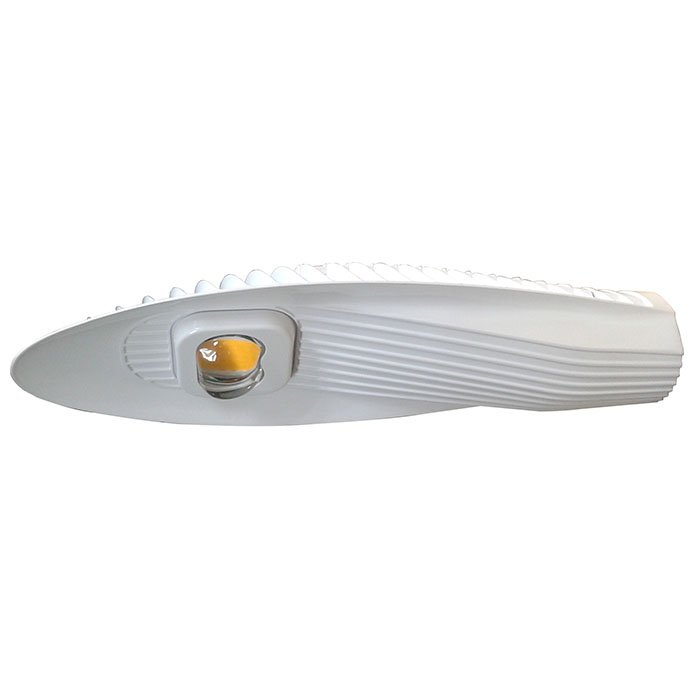

100W Slim Cobra Head LED Street Light YR-SH640

Yaorong Slim Cobra Head LED Street Light Advantages

—————

1.Uniform light color: Yaorong Technology LED street lights do not add lenses, and do not sacrifice uniform light color to improve brightness, so as to ensure uniform light color without aperture.

2.Constant current drive: Yaorong Technology LED street lamp adopts constant current IC drive technology, which can make the drive circuit still have extremely high conversion efficiency under the premise of maintaining good constant current output characteristics.

3.Multiple color temperature options: Yaorong Technology LED street lights are available in multiple color temperatures to meet application needs in different scenarios. It is also an important way to improve efficiency and reduce costs.

4.Anti-glare and not dazzling: Yaorong Technology LED street light adopts DC dimming, does not flicker, does not irritate the eyes, and protects eyesight. It brings better lighting to pedestrians and drivers on the road and is safer.

5.Customized light distribution: Yaorong Technology LED street light adopts a uniquely designed optical system and humanized light distribution design, which can reasonably control the light distribution according to the continuity of the road and vision, ensure road illumination and light uniformity, and can effectively avoid traditional light sources. Glare situation. And use high-power LED light energy to eliminate the phenomenon of lighting spots.

6.Easy installation: Solar LED street lights do not need to add buried cables, rectifiers, etc., directly connect the lamp pole or put the light source into the original lamp shell, just make a cement base, and then fix it with galvanized bolts.

Yaorong Slim Cobra Head LED Street Light Certification

—————

Yaorong Technology Slim Cobra Head LED Street Lightparameter

—————

Slim Cobra Head LED Street Light
Model	CRI	Luminous Flux	Power	CCT	Warranty
YR-ST400-W010	≥70	1000LM	10W	30K/40K/50K/60K/70K	5 years
YR-ST400-W020	≥70	2100LM	20W	30K/40K/50K/60K/70K	5 years
YR-ST400-W030	≥70	3000LM	30W	30K/40K/50K/60K/70K	5 years
YR-ST400-W040	≥70	4000LM	40W	30K/40K/50K/60K/70K	5 years
YR-ST400-W050	≥70	5200LM	50W	30K/40K/50K/60K/70K	5 years
YR-ST640-W060	≥70	5800LM	60W	30K/40K/50K/60K/70K	5 years
YR-ST640-W080	≥70	7200LM	80W	30K/40K/50K/60K/70K	5 years
YR-ST640-W100	≥70	9000LM	100W	30K/40K/50K/60K/70K	5 years
Temperature	-40°~45°
Power Efficiency	≥0.9
Protection level	IP66
Beam angle	85°135°/90°140°
Shell Color	Black/White/Customized Color
Certification	FC/UL/CE/ROHS

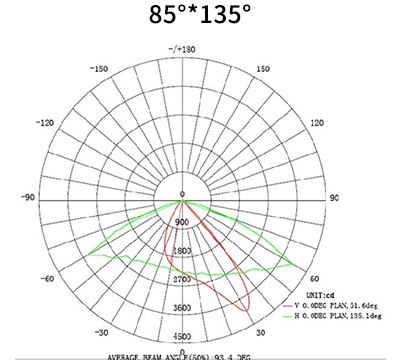

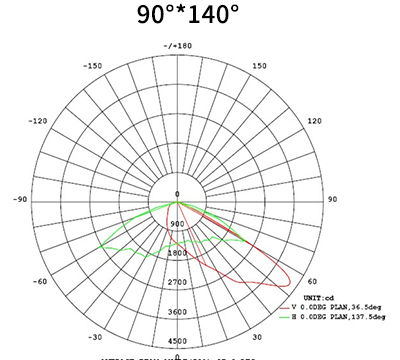

Yaorong Technology Slim Cobra Head LED Street Light Light distribution curve

—————

Yaorong Technology Slim Cobra Head LED Street LightLight distribution curve

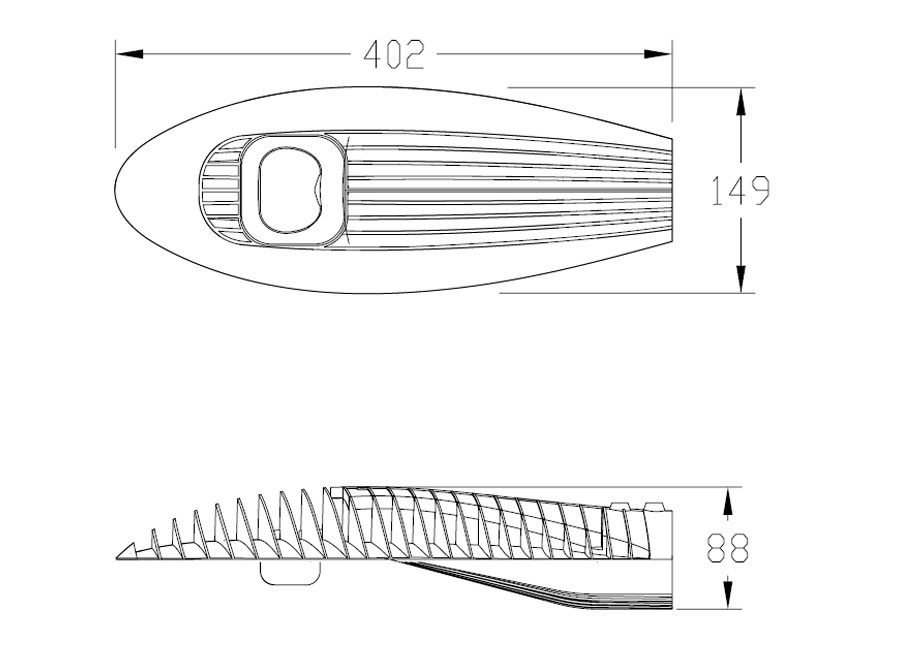

Slim Cobra Head LED Street Light Size Atlas

—————

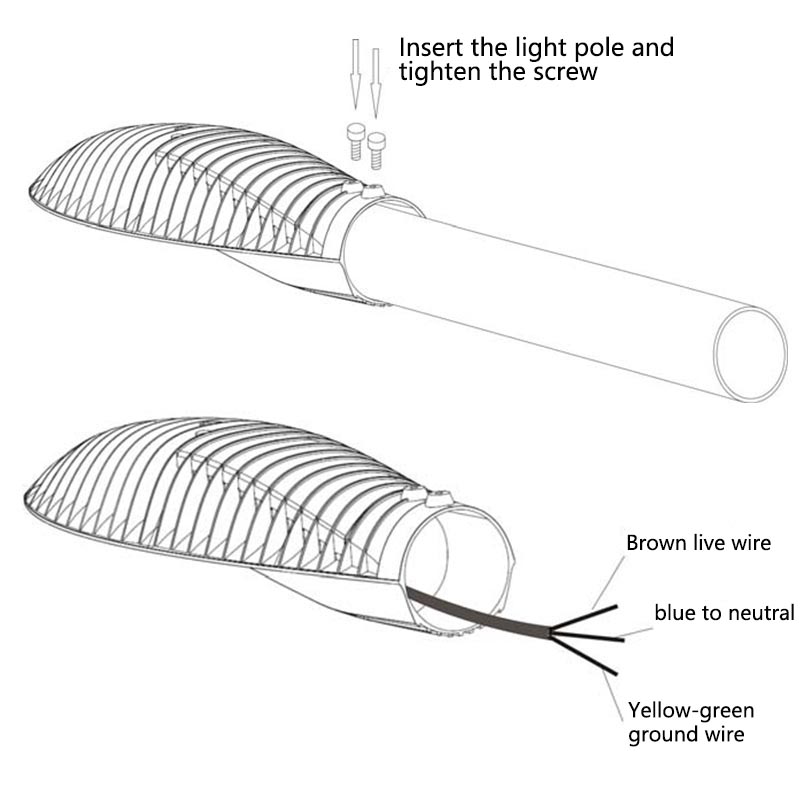

Slim Cobra Head LED Street Light installation Atlas

—————

Precautions For The Installation Of Slim Cobra Head LED Street Light

—————

Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
In order to prevent the lamp from falling off, please make sure that the installation is correct.
Please do not use it in a place with corrosive gas.
Please do not cover any material on the lamp.
For safety, please connect the ground wire securely.
This LED lamp has a five-year warranty from the date of purchase.
However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.

Five-year warranty

—————

Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.

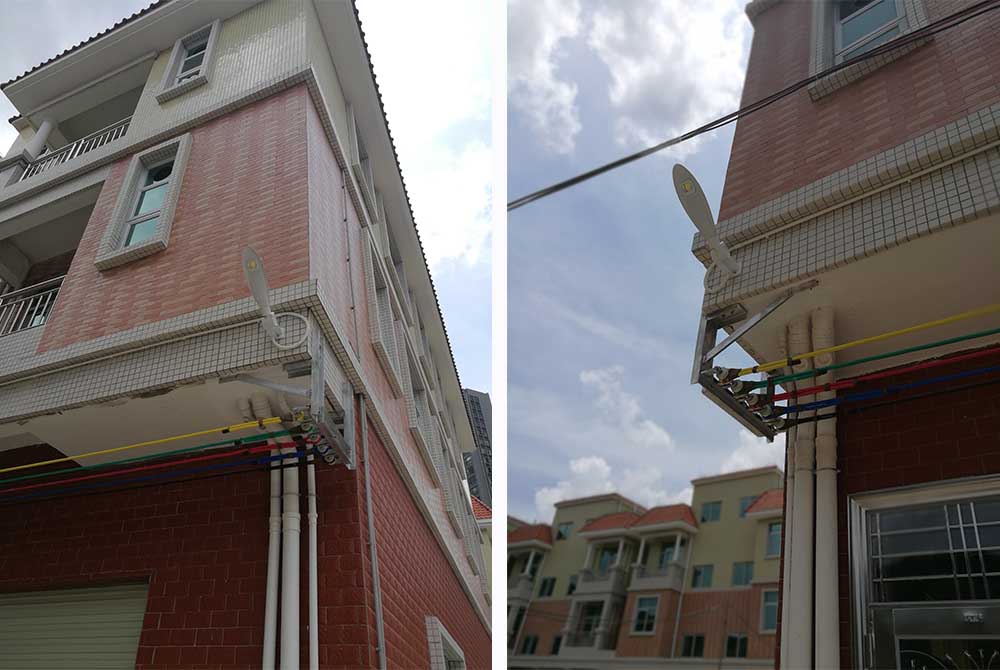

Yaorong Slim Cobra Head LED Street Light Case

—————
