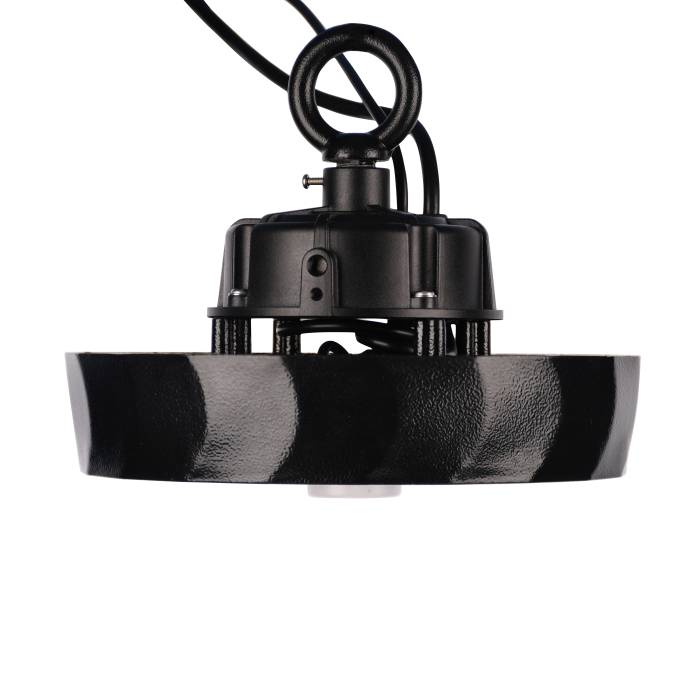

Yaorong led High Bay Industrial Light Advantages
—————
1.High protection level: Yaorong Technology LED high bay light has passed IP65 waterproof certification. The use of silicone rubber sealing ring ensures that the product can be used in harsh environments such as high dust and water vapor.
2.Intelligent light/human sensor: Yaorong Technology LED high bay light can be equipped with intelligent sensor module, the light will be on when people come, and the light will be off when people go. Intelligent dimming and microwave induction configuration are optional, freeing hands and embracing life.
3.Good explosion-proof performance: Yaorong Technology LED high bay light adopts a special explosion-proof structure design, with excellent explosion-proof performance, which can be used in various flammable and explosive places. The installation is simple and the safety factor is high.
4.The material is environmentally friendly: the interior of the LED high bay light does not contain mercury and other heavy metals. When damaged or destroyed, it will not cause danger or pollution to human health and the environment. It can also be recycled, in line with the characteristics of green and environmental protection.
5.Heat dissipation design: Yaorong Technology LED high bay light adopts a bionic fin convection integrated lamp body heat dissipation design, pure aluminum heat sink, die-cast aluminum integrated heat dissipation, and the heat dissipation effect is better and beautiful without losing the essence.
6.5-year warranty: Yaorong Technology LED high bay lights provide up to 5 years warranty. Yaorong will solve the after-sales problems for you the first time, so that you can buy and use with peace of mind.
Yaorong led High Bay Industrial Light Certification
—————
Yaorong led High Bay Industrial Light Parameters
—————
| UFO High Bay Light | |||
| Model | CRI | Luminous Flux | Power |
| YR-HB252-W100 | ≥70 | 13000LM | 100W |
| YR-HB320-W150 | ≥70 | 19500LM | 150W |
| YR-HB320-W200 | ≥70 | 26000LM | 200W |
| YR-HB320-W240 | ≥70 | 31200LM | 240W |
| CCT | 30K/40K/50K/60K/70K | ||
| Warranty | 5 years | ||
| Temperature | -40°~50° | ||
| Power Efficiency | ≥0.9 | ||
| Protection level | IP65 | ||
| Beam angle | 60°/90°/120° | ||
| Shell Color | Black/Silver/White/Customized Color | ||
| Certification | ETL/DLC/CE/ROHS/3C/SAA | ||
Yaorong UFO High Bay Light Features
—————
Motion sensor :Saving energy cost and labor cost
3 kind reflectors for option，All covers have 60°/90°/120°degree for options
Yaorong led High Bay Industrial Light Distribution Curve
—————
Yaorong led High Bay Industrial Light Distribution Curve
Yaorong led High Bay Industrial Light Distribution Curve
Yaorong led High Bay Industrial Light Distribution Curve
Yaorong NB-IOT Single Controller Parameters
—————
| NB-IOT Single controller | |||
| Name | YR-NB73-12 single controller | Temperature | -40°~85° |
| Power | DC12V | Sensitivity | -135dBm |
| Communication | NB-IOT wireless network communication interface Fully comply with NB-IOT narrowband communication standard |
Frequency | LTE NB-IOT B3/B5/B8/B26 |
| Switch output | 1 way, contact 12V/16A | Transmit power | 23dBm |
| Dimming output | 1 way, 0-10V/PWM | Protection level | IP65 |
| Elec Parameter | Voltage, current, power, factor, electric energy | Antenna type | Built-in |
| Model | YR-NB73-220、YR-NB73-12 YR-M5310-220、YR-M5310-12 |
Dimensions | 84*84*97mm |
| Advantages | 1. Grouping, time control, light control, induction, latitude and longitude switch lights; 2. Dimmable from 0 to 100%; 3. With system monitoring function and positioning alarm function; |
||
led High Bay Industrial Light Size Atlas
—————
led High Bay Industrial Light Installation Method Atlas
—————
led High Bay Industrial Light Packaging information
—————
| Wattage | Product Dimension(mm/in) | Carton Box Dimension | N.W (Kg/lb) | G.W(Kg/lb) | One Carton |
| 100W | 252×252×180mm 9.92×9.92×7.09in |
300×300×190mm 11.81×11.81×7.48in |
2.5Kg(5.51lb) | 3.0Kg(6.61lb) | 1PCS |
| 150W | 252×252×180mm 9.92×9.92×7.09in |
300×300×190mm 11.81x11-81×7.48in |
2.7Kg(5.95lb) | 3.4Kg(7.50lb) | 1PCS |
| 200W | 320×320×193mm 12.60×12.60×7.60in |
370×370×200mm 14.57×14.57×7.87in |
3.2Kg(7.05lb) | 4.1Kg(9.04lb) | 1PCS |
| 240W | 320×320×193mm 12.60×12.60×7.60in |
370×370×200mm 14.57×14.57×7.87in |
3.5Kg(7.72lb) | 4.5Kg(9.92lb) | 1PCS |
| PC Reflector | 470×470×210mm 18.50×18.50×8.30in |
370×370×200mm 14.57×14.57×7.87 in |
/ | 6.3Kg(13.89lb) | 10PCS |
| AL Reflector | 520×520×380mm 20.50×20.50×15.00in |
370×370×200mm 14.57×14.57×7.87in |
/ | 7.6Kg(16.76lb) | 10PCS |
led High Bay Industrial Light Packaging Atlas
—————
Precautions For The Installation Of led High Bay Industrial Light
—————
- Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
- In order to prevent the lamp from falling off, please make sure that the installation is correct.
- Please do not use it in a place with corrosive gas.
- Please do not cover any material on the lamp.
- For safety, please connect the ground wire securely.
- This LED lamp has a five-year warranty from the date of purchase.
- However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.
Five-year warranty
—————
