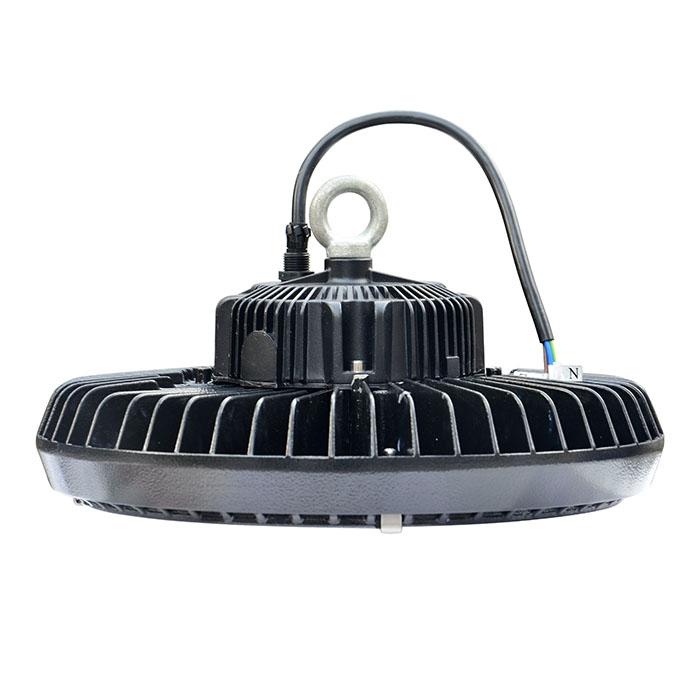

Yaorong UFO High Bay Light Advantages
—————
1.Fast start-up speed: Yaorong Technology LED high bay lights start without delay, and the light can reach normal brightness. It adopts low-voltage constant current mode to work, can adapt to various working environments, avoid accidental damage caused by voltage instability, and has no safety hazards.
2.Heat dissipation design: Yaorong Technology LED high bay light adopts a bionic fin convection integrated lamp body heat dissipation design, pure aluminum heat sink, die-cast aluminum integrated heat dissipation, and the heat dissipation effect is better and beautiful without losing the essence.
3.Beautiful appearance design: The overall appearance of Yaorong Technology's LED industrial and mining lamp is imitating UFO spacecraft model design, ultra-thin and unique shell, perfect radial design, simple and fashionable appearance.
4.Low light decay: The luminous decay of Yaorong's LED high bay lights is still less than 10% after 36,000 hours of operation. Compared with traditional lamps, the light decay of traditional lamps can reach more than 30% after working for 10,000 to 15,000 hours.
5.No radiation: LED industrial and mining lamps do not produce ultraviolet rays, and the light is relatively mild. Unlike traditional lamps that produce strong ultraviolet rays, the surroundings of LED industrial and mining light sources are cleaner and hygienic.
6.High luminous efficiency: Yaorong Technology LED high bay light adopts Fresnel optical lens, the display effect is more comfortable and elegant. It has excellent anti-ultraviolet performance, making LED industrial and mining lighting more efficient.
Yaorong UFO High Bay Light Certification
—————
Yaorong UFO High Bay Light Parameters
—————
UFO High Bay Light | |||
Model | CRI | Luminous Flux | Power |
YR-HB250-W040 | ≥70 | 5050LM | 40W |
YR-HB250-W060 | ≥70 | 6900LM | 60W |
YR-HB250-W100 | ≥70 | 11650LM | 100W |
YR-HB350-W150 | ≥70 | 17250LM | 150W |
YR-HB350-W200 | ≥70 | 23000LM | 200W |
YR-HB350-W240 | ≥70 | 28500LM | 240W |
CCT | 30K/40K/50K/60K/70K | ||
Warranty | 5 years | ||
Temperature | -40°~85° | ||
Power Efficiency | ≥0.9 | ||
Protection level | IP65 | ||
Beam angle | 60°/90°/120° | ||
Shell Color | Black/Silver/White/Customized Color | ||
Certification | ETL/DLC/CE/ROHS/3C/SAA |
Yaorong UFO High Bay Light Distribution Curve
—————
Yaorong UFO High Bay Light Distribution Curve
Yaorong UFO High Bay Light Distribution Curve
Yaorong UFO High Bay Light Distribution Curve
Yaorong NB-IOT Single Controller Parameters
—————
NB-IOT Single controller | |||
Name | YR-NB73-12 single controller | Temperature | -40°~85° |
Power | DC12V | Sensitivity | -135dBm |
Communication | NB-IOT wireless network communication interface Fully comply with NB-IOT narrowband communication standard | Frequency | LTE NB-IOT B3/B5/B8/B26 |
Switch output | 1 way, contact 12V/16A | Transmit power | 23dBm |
Dimming output | 1 way, 0-10V/PWM | Protection level | IP65 |
Elec Parameter | Voltage, current, power, factor, electric energy | Antenna type | Built-in |
Model | YR-NB73-220、YR-NB73-12 YR-M5310-220、YR-M5310-12 | Dimensions | 84*84*97mm |
Advantages | 1. Grouping, time control, light control, induction, latitude and longitude switch lights; 2. Dimmable from 0 to 100%; 3. With system monitoring function and positioning alarm function; |
UFO High Bay Light Size Atlas
—————
UFO High Bay Light Installation Method Atlas
—————
Precautions For The Installation Of UFO High Bay Light
—————
- Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
- In order to prevent the lamp from falling off, please make sure that the installation is correct.
- Please do not use it in a place with corrosive gas.
- Please do not cover any material on the lamp.
- For safety, please connect the ground wire securely.
- This LED lamp has a five-year warranty from the date of purchase.
- However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.
Five-year warranty
—————
Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.
Yaorong UFO High Bay Light Case
—————
Yaorong UFO High Bay Light Case
Yaorong Company Scene
—————
Yaorong Interior Exhibition Hall:LED Street light
Yaorong Interior Exhibition Hall:LED wall pack light
Yaorong Factory Scene
—————
Yaorong Factory Front Gate
Yaorong R&D Workshop
